Product Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 15.0 USD | Production Capacity: | 100000 pcs/year |
| Trade Term: | FOB,CFR,CIF,DAT,FAS,DDP,DAP,CIP,CPT,FCA,EXW | Packing: | White box No Logo |
| Payment Terms: | Paypal, L/C, D/P, D/A, T/T, WU, Money Gram | Delivery Date: | 2 Weeks |
| Min. Order: | 5 pcs | ||
| Means of Transport: | Ocean, Air, Land | ||
Operational Conditions:
Temperature: -30℃ to +200 ℃
Pressure: ≤1.0Mpa
Speed: ≤20 m/s
Material:
Rotary Ring: Sic / TC
Stationary Ring: Carbon/ Sic / TC
O-Ring : VITON, NBR,EPDM
Spring and Metal Parts: SUS304 / SUS316

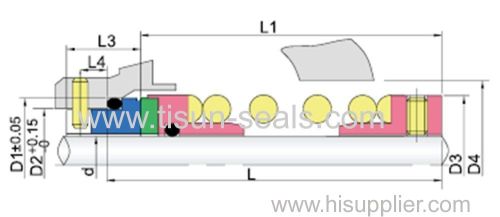

| Seal Size d | D1 | D2 | D3 | D4 | L | L1 | L3 | L4 |
| 20 | 33.32 | 29.06 | 34.50 | 37.00 | 44.50 | 35.50 | 15.00 | 4.00 |
| 25 | 39.85 | 33.84 | 41.00 | 43.00 | 49.00 | 39.00 | 16.00 | 4.00 |
| 28 | 43.05 | 37.01 | 42.00 | 46.00 | 51.00 | 41.00 | 16.00 | 4.00 |
| 30 | 44.63 | 38.61 | 45.50 | 47.50 | 51.00 | 41.00 | 16.00 | 4.00 |
| 32 | 46.32 | 40.28 | 47.00 | 49.00 | 54.00 | 44.00 | 16.00 | 4.00 |
| 35 | 49.48 | 43.46 | 50.00 | 52.50 | 57.00 | 47.00 | 16.00 | 4.00 |
| 38 | 52.56 | 46.63 | 53.00 | 55.50 | 57.00 | 47.00 | 16.00 | 4.00 |
| 40 | 54.25 | 48.13 | 55.00 | 57.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 42 | 55.83 | 49.81 | 55.00 | 58.50 | 57.00 | 47.00 | 16.00 | 4.00 |
| 45 | 59.02 | 52.98 | 60.00 | 62.00 | 57.00 | 47.00 | 16.00 | 4.00 |
| 50 | 65.37 | 59.33 | 66.00 | 68.50 | 68.50 | 58.50 | 18.00 | 5.00 |
| 55 | 70.03 | 64.01 | 71.00 | 73.00 | 70.00 | 60.00 | 18.00 | 5.00 |
| 60 | 76.38 | 70.36 | 77.00 | 81.00 | 73.00 | 63.00 | 18.00 | 5.00 |
| 65 | 81.23 | 75.21 | 82.00 | 85.50 | 76.00 | 66.00 | 18.00 | 5.00 |
| 70 | 85.90 | 79.88 | 87.00 | 90.50 | 76.00 | 66.00 | 18.00 | 5.00 |
| 75 | 90.77 | 84.73 | 91.50 | 97.00 | 81.00 | 71.00 | 18.00 | 5.00 |
| 80 | 100.29 | 94.26 | 99.50 | 103.00 | 87.50 | 77.50 | 18.00 | 5.00 |
| 82 | 104.77 | 98.93 | 105.50 | 108.00 | 87.50 | 77.50 | 18.00 | 5.00 |
| 90 | 109.82 | 103.78 | 110.50 | 114.50 | 92.00 | 82.00 | 18.00 | 5.00 |
| 95 | 114.30 | 108.46 | 115.50 | 119.00 | 92.00 | 82.00 | 18.00 | 5.00 |
| 100 | 119.33 | 113.31 | 120.00 | 124.00 | 92.00 | 82.00 | 18.00 | 5.00 |
| 105 | 127.00 | 121.16 | 128.00 | 132.00 | 98.50 | 88.50 | 18.00 | 5.00 |
| 110 | 131.77 | 126.01 | 133.00 | 137.00 | 85.50 | 88.50 | 18.00 | 5.00 |
| 115 | 136.52 | 130.68 | 137.50 | 142.00 | 85.50 | 88.50 | 18.00 | 5.00 |
| 120 | 142.87 | 137.03 | 144.00 | 147.00 | 105.00 | 95.00 | 18.00 | 5.00 |
